Sky Jump came into the shop via another customer. The description of the game was it worked for a bit, until the owner fiddled around with it and no longer worked. The game sat in a dry garage for over five years. Since I just worked on Strange World and High Hand, I originally thought that it was going to be an easy fix. However, I realized that probably was not going to be the case once I saw it in person 😁. I started the repair by first taking out the playfield and motherboard. I gave the machine a good vacuum and cleaned up any of the debris

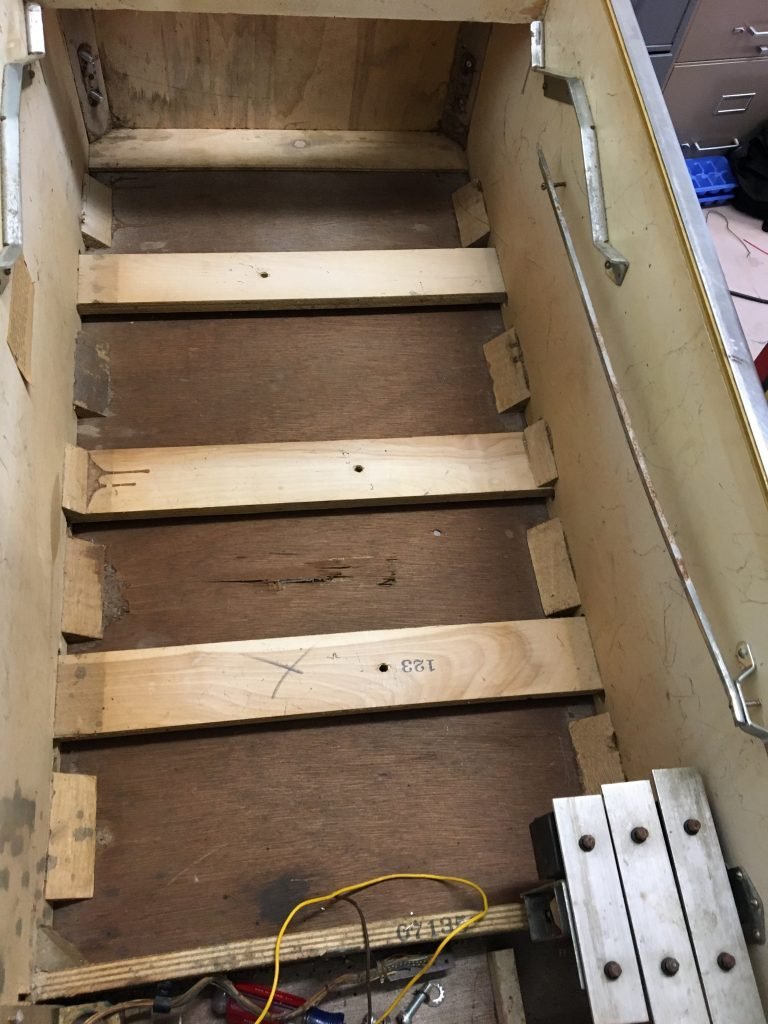

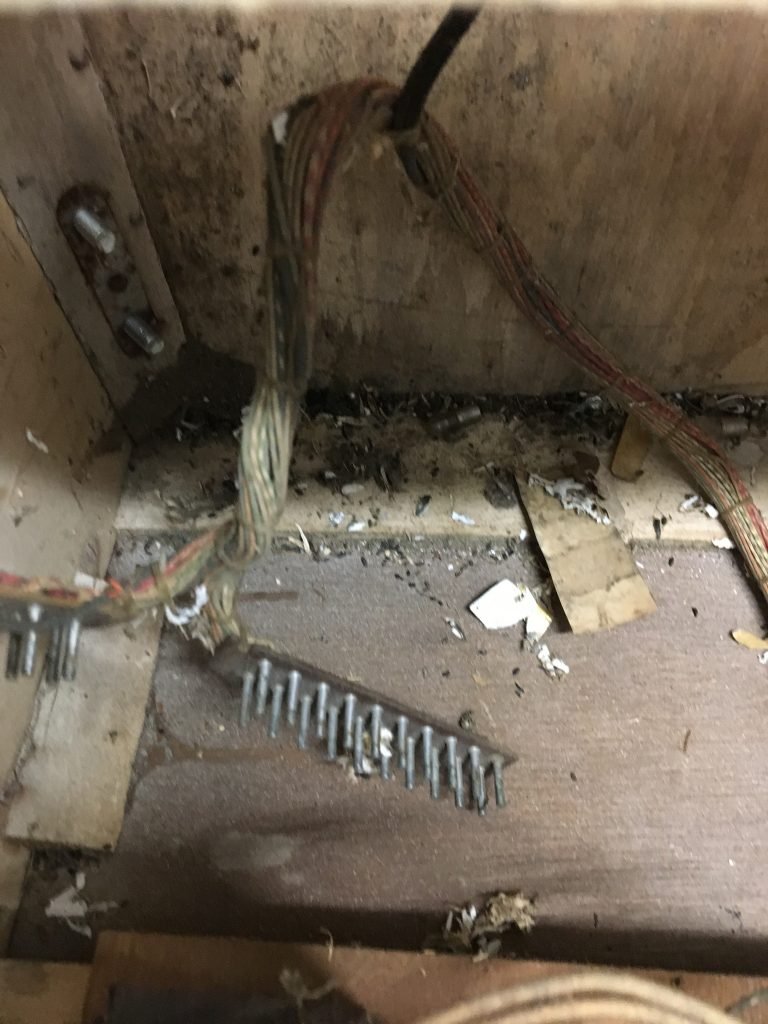

Game as I got it. Dirty and full of mouse poop. Game had a doorbell installed for credits along with a hack for free play. Game nice and clean!
Motherboard

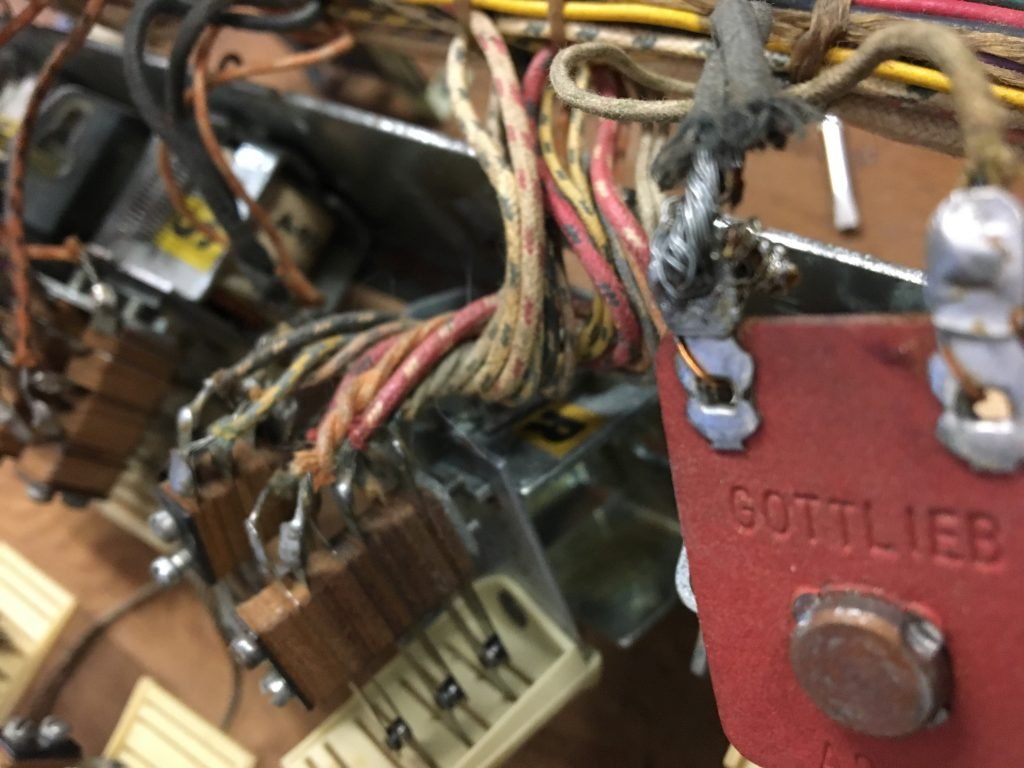

I took out the motherboard and started going through every relay and switch. I noticed after a short bit of time that someone did not like to solder. They would just wrap the wire around connections and found this in other spots, too. Some switches were out of the armature and needed adjusted.

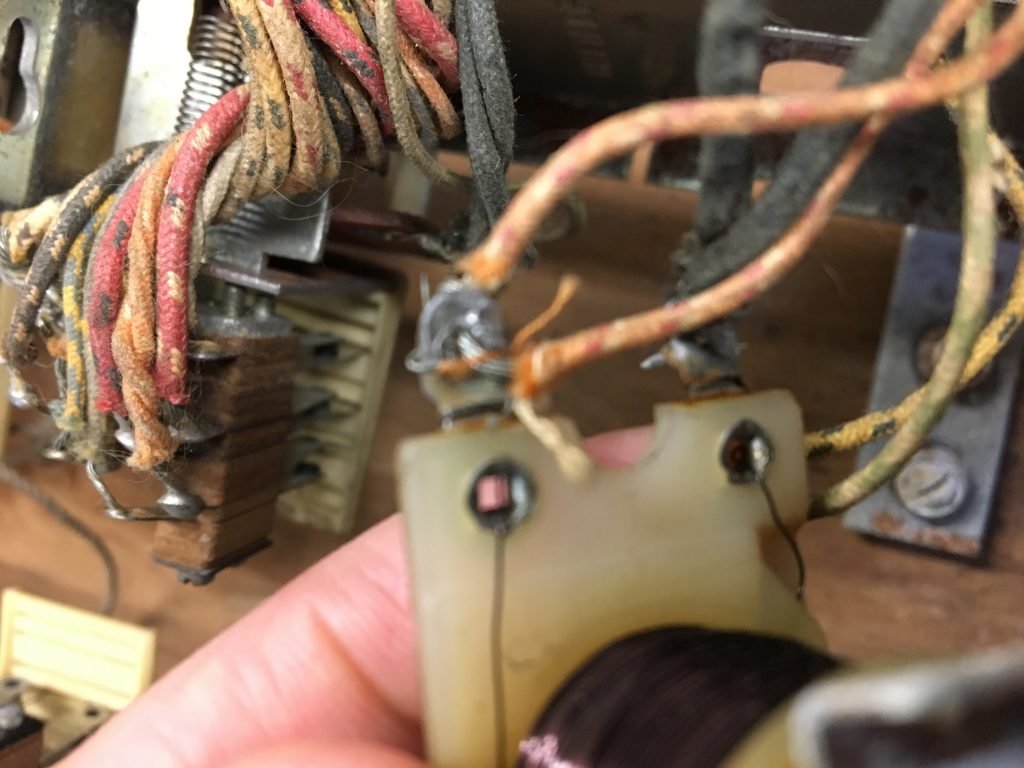

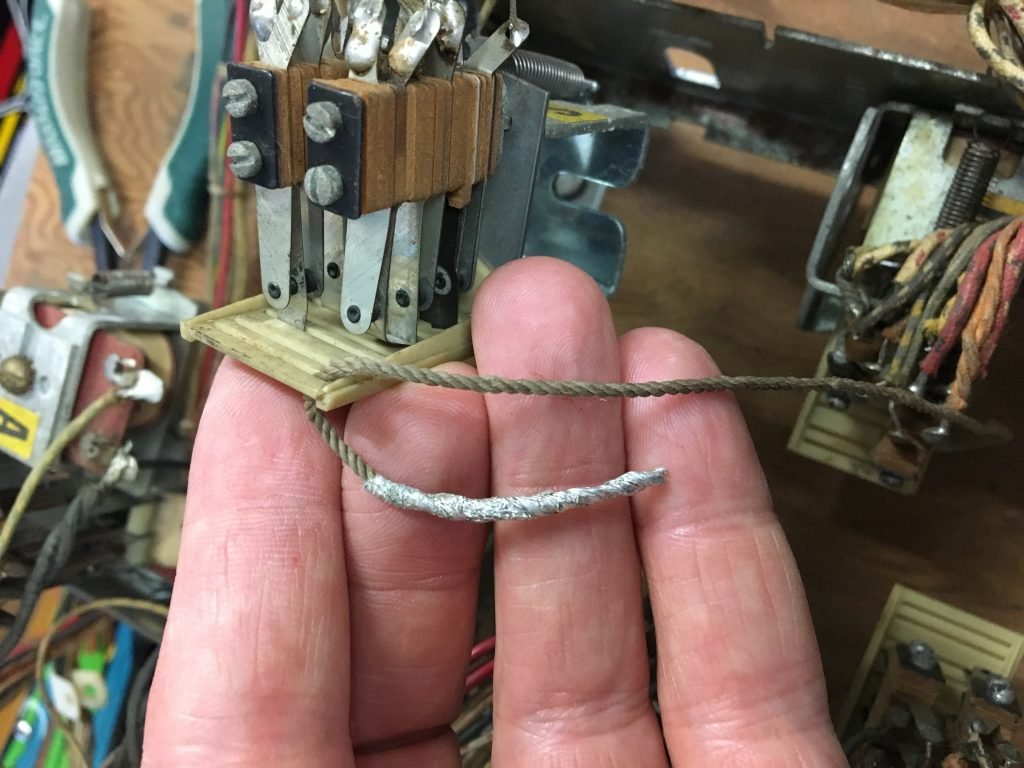

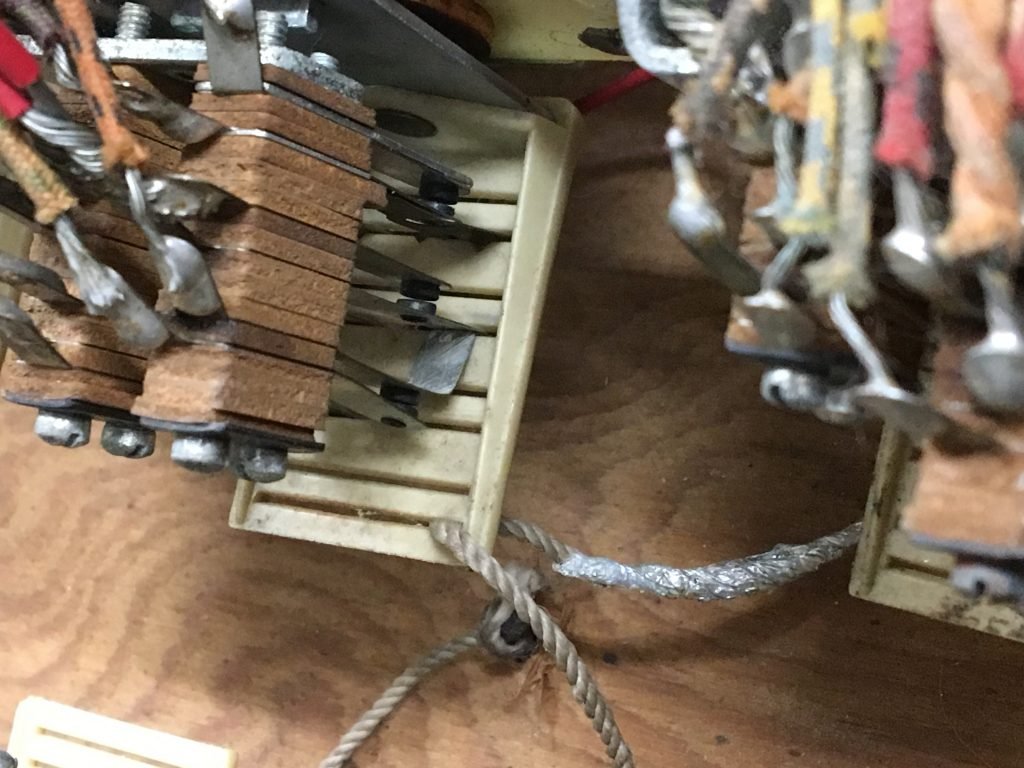

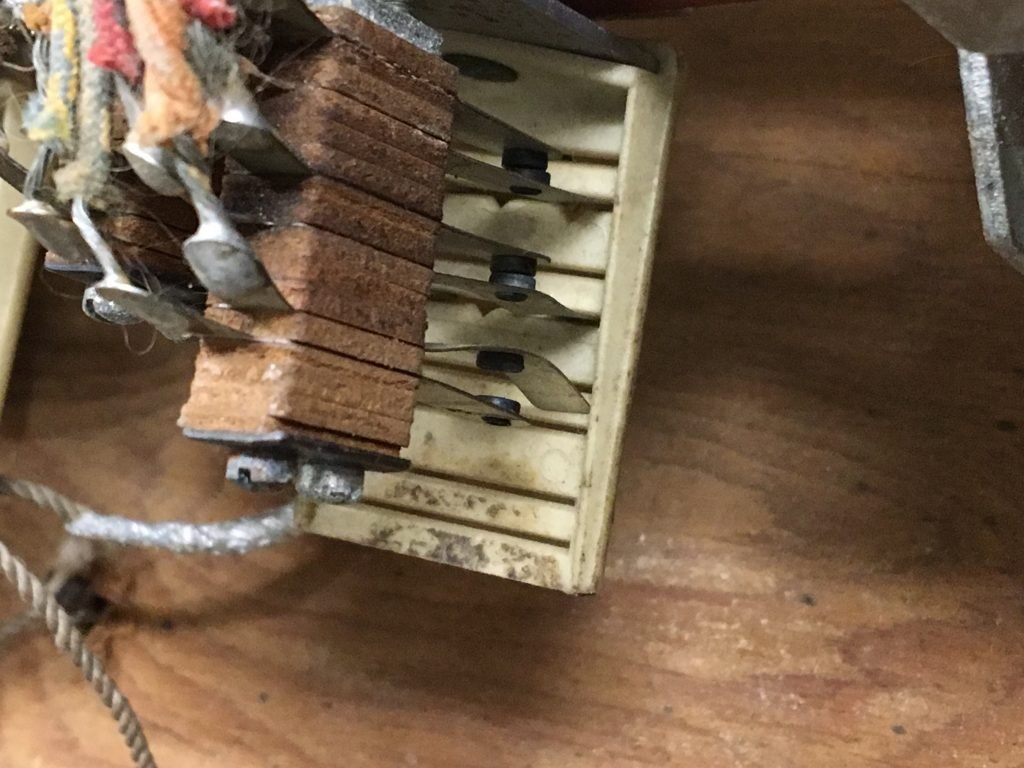

Bent switch. “That dog isn’t going to be able to hunt”. Poor dog. No idea what is going on here. It’s a string attached to the armature with tin foil on the end. Loose wire connection that needed soldered. Loose wire connection that needed soldered.
The score motor also needed some adjusting. A set of switches could not make transitions due to a bent fork. Straightening the fork, cleaning, and adjusting the switches now allowed them to transition. I checked the fuses at this point and found two were not the correct amperage. I just threw in two circuit breakers knowing that I will put in the correct fuses when done with the game.

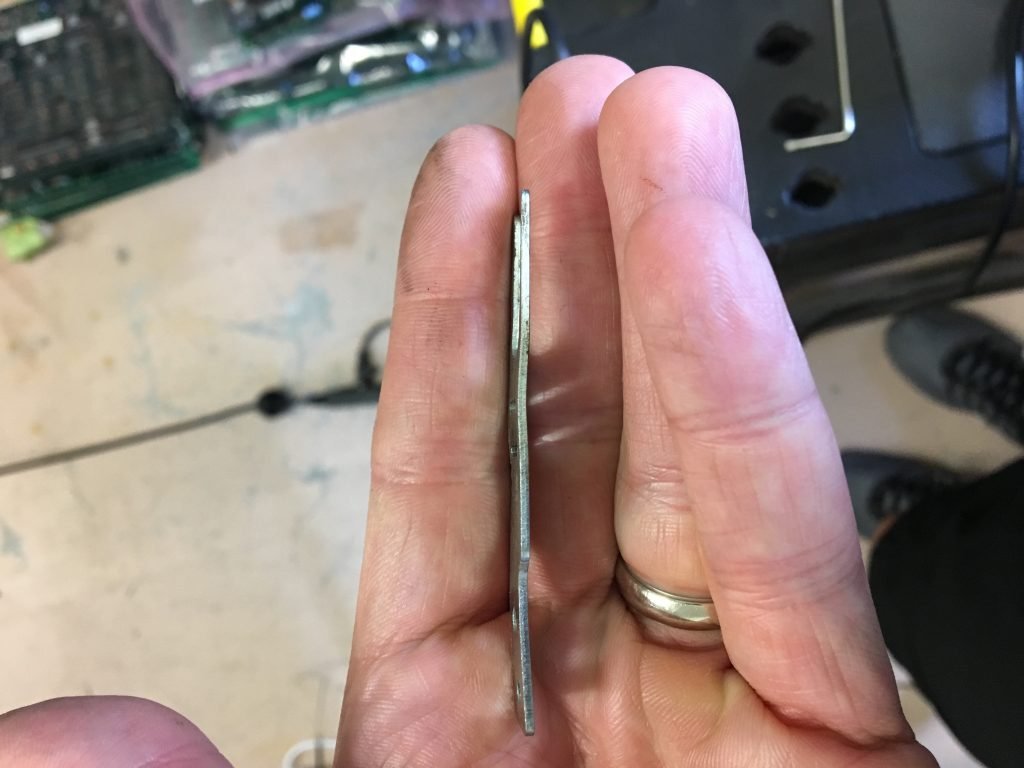

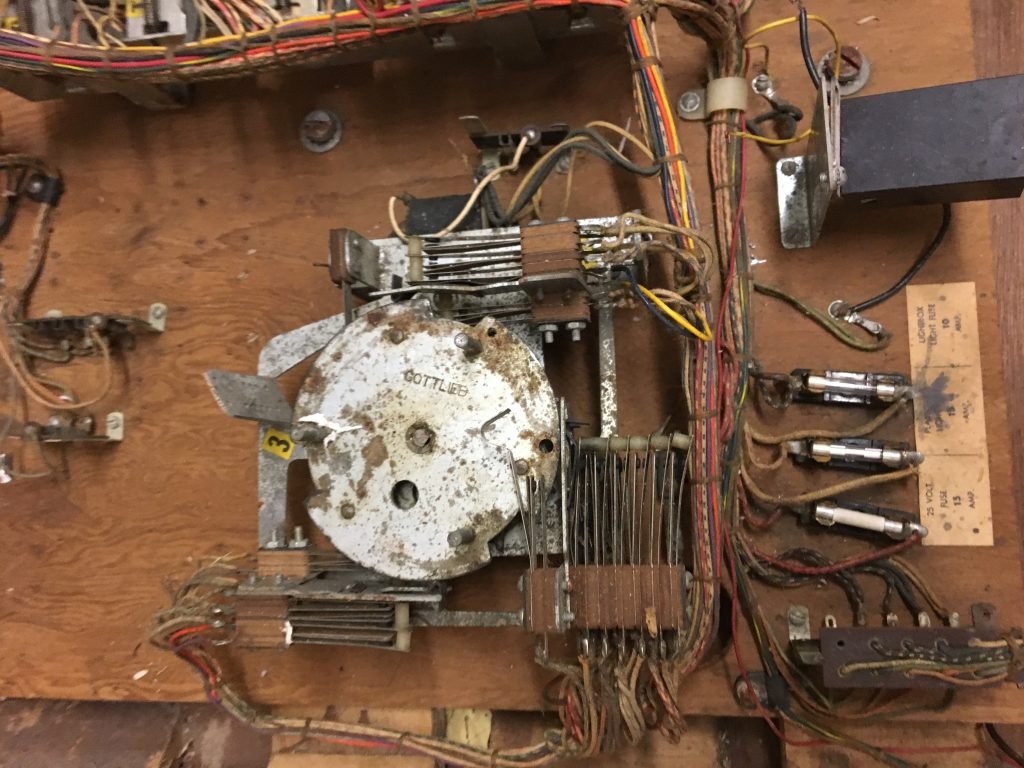

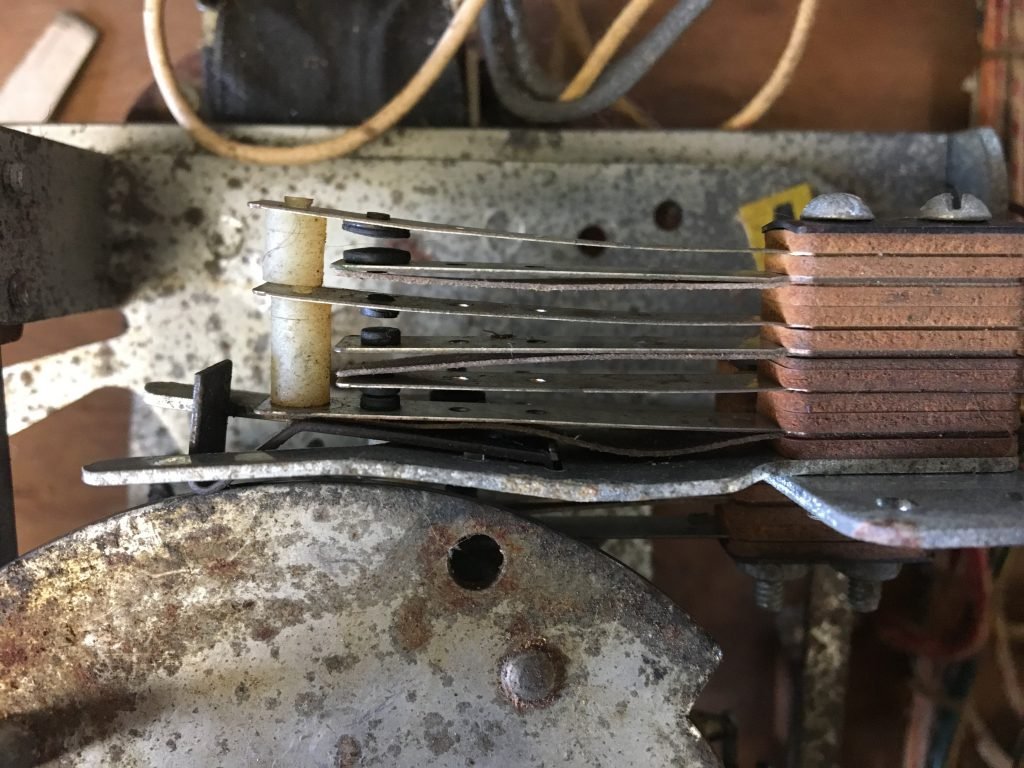

Score motor Bent fork. Couldn’t tell what should be open or closed contacts on this switch stack. Fork straightened and ready to put back in game.
Backbox

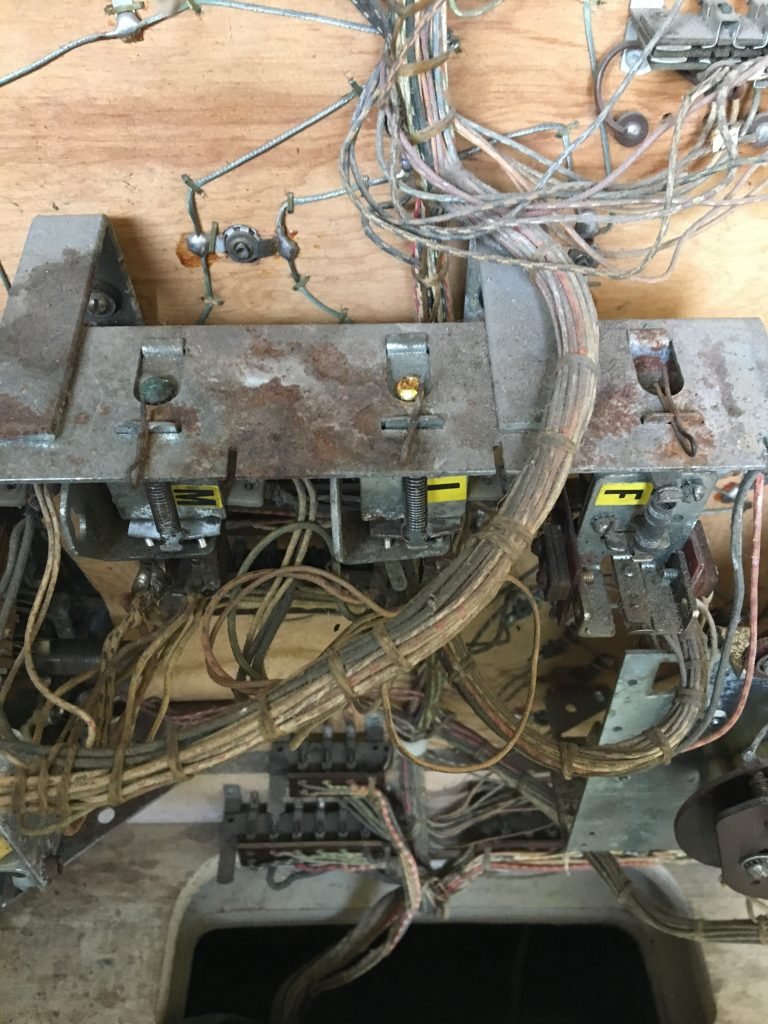

Moving onto the backbox, the credit unit and ball count unit were both sticking. I took apart both units, cleaned, and re-lubed them. Both units were now moving correctly when I manually engaged the coil. Next, I moved to the relays and thought this would take a couple of minutes, but ended up taking a very long time. The scoring relays had rusted over. The screws from the switch stack and the coils ended up breaking. I fought this for quite a while, and finally removed all of them. I replaced most of them with new screws. If anyone is wondering the switch stack screws are #3-48.

The last step in the backbox was going through the score reels. All four of the reels were cleaned and adjusted. I did notice that two EOS contacts were missing. I replaced those with new switches.
Powering on the Game

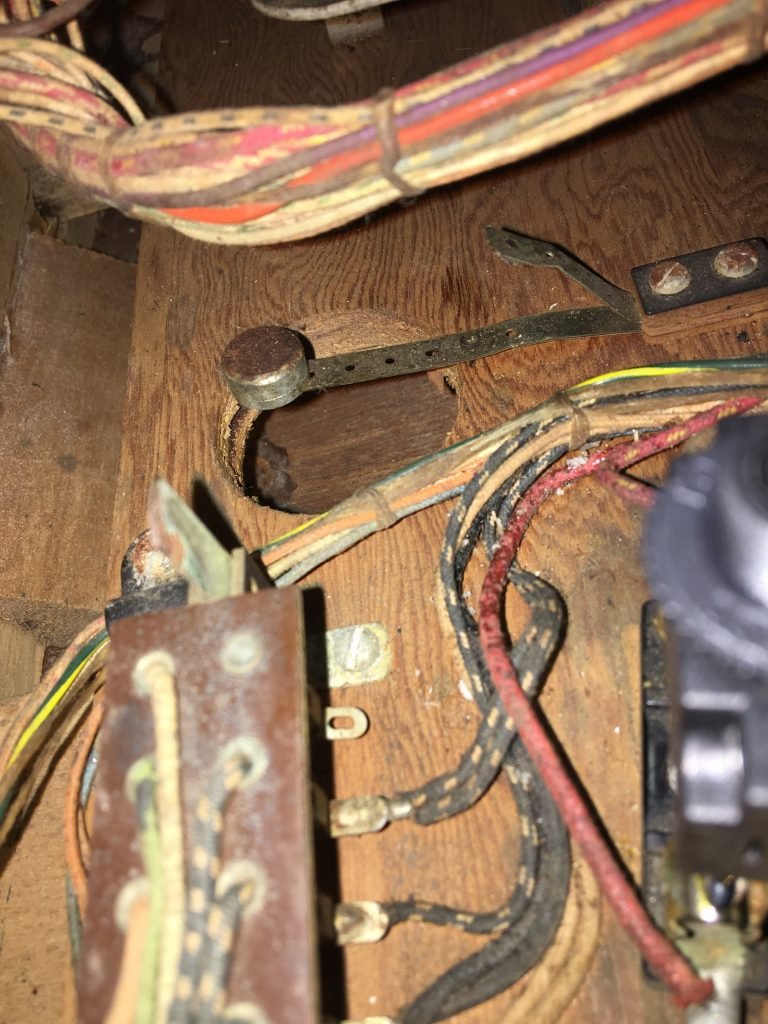

After putting everything back together, I decided to power on the game. I didn’t worry about the playfield (yet). I turned on the game and the two coin door lights lit up. That was it. I tried to manually move the score motor, and it didn’t move. Looking at the schematic, the bounce switch is right after the power to the lights. I inspected this switch and noticed that it was wide open when it should have been closed. This provides power to a majority of the game.

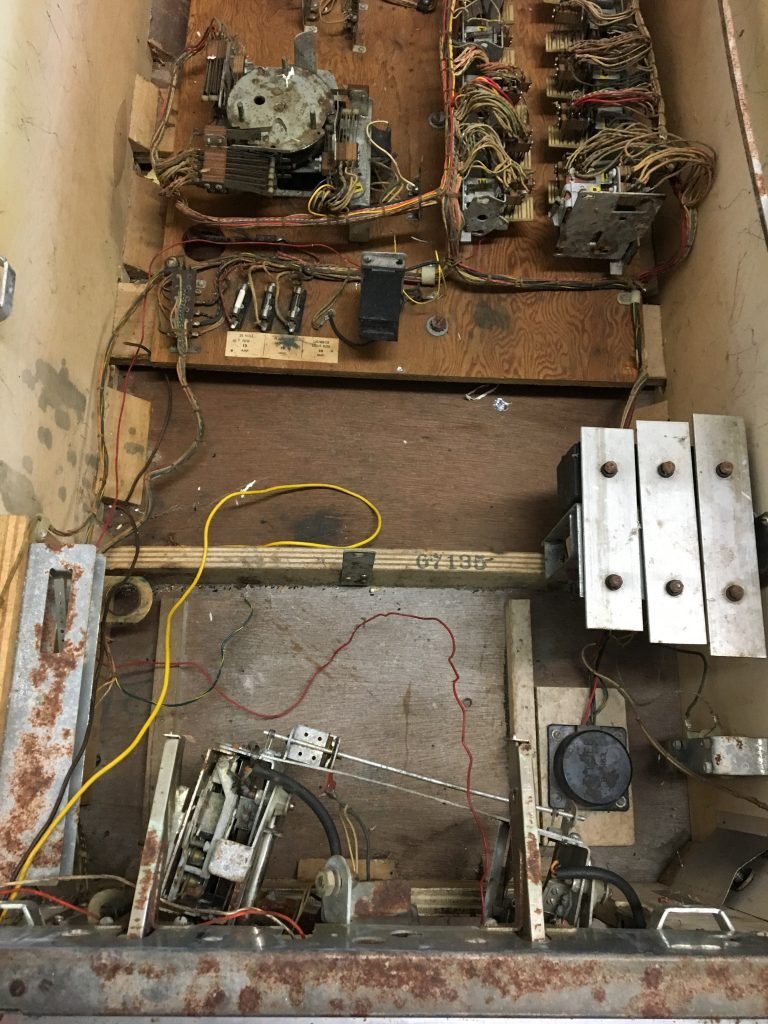

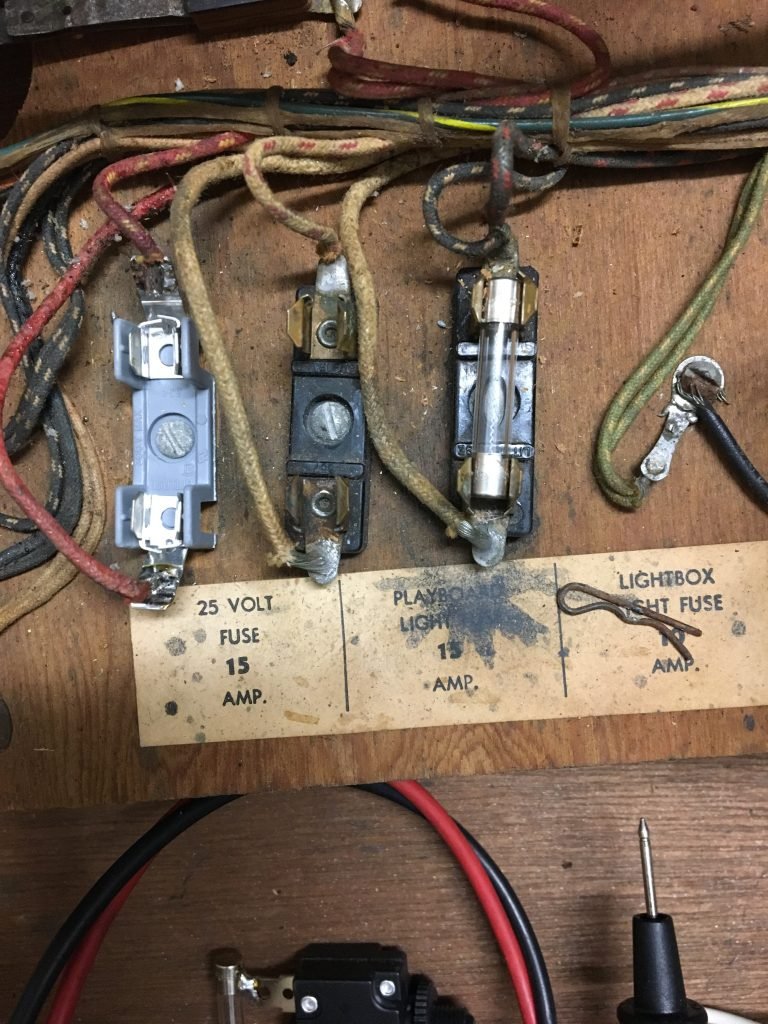

This now brought power and the score motor rotated. I tried to start a game and the Start relay and Hold relay would engage for a second then release. Both of these need to be on for the game to restart. The cause of the problem ended up being a wiring hack on the coin door. Redoing the wiring created the two relays work correctly. The fuse holders created intermittent power issues. At this point, I switched them out with new ones. After a few more adjustments (Hold relay) the game would now restart and start playing!

Playfield

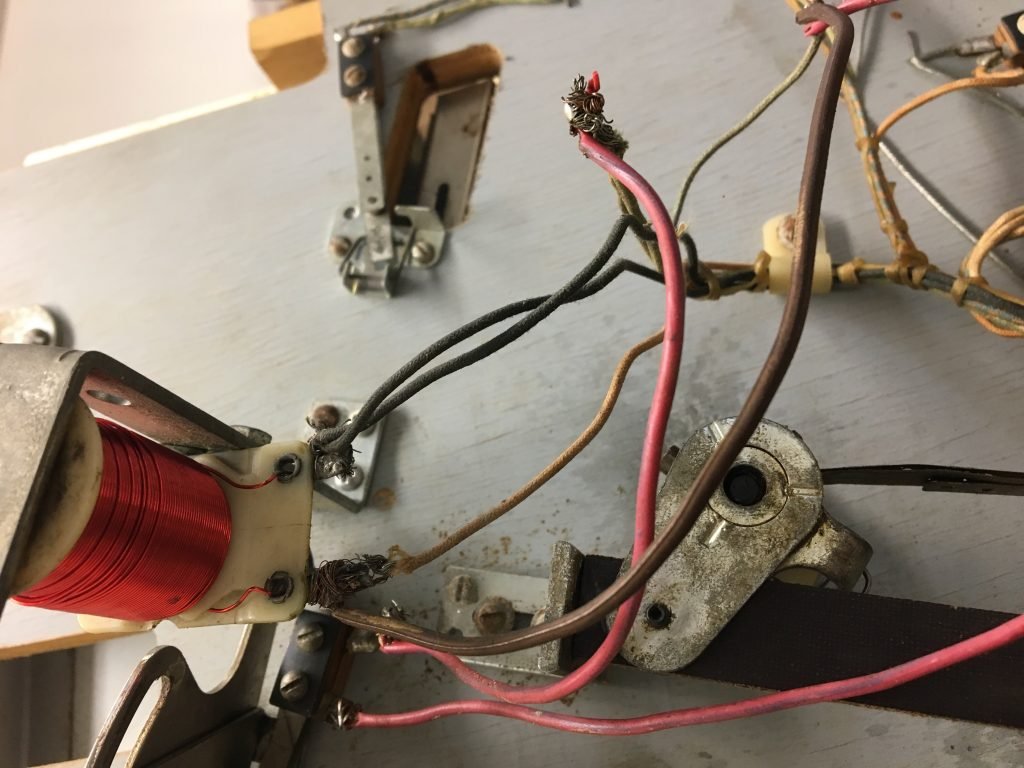

With the game now playing, I took the time to look at the playfield. I like doing this because the game will tell you want needs to be adjusted. The first thing I noticed was the ball kicker was continuously firing. Upon closer inspection, I could tell there was something wrong with it. Someone (who doesn’t’ like to solder) wrapped some wires around a few of the connections. I cleaned up this problem and adjusted one of the switches and the problem stopped.

The sounds chimes did not produce any sounds when hit. I had the same problem with my El Dorado. The next problem to tackle was the drop targets. They worked okay, but needed a good cleaning and one target had broken. Owner said I could use an extra cactus target that I had on hand and ended up using that.

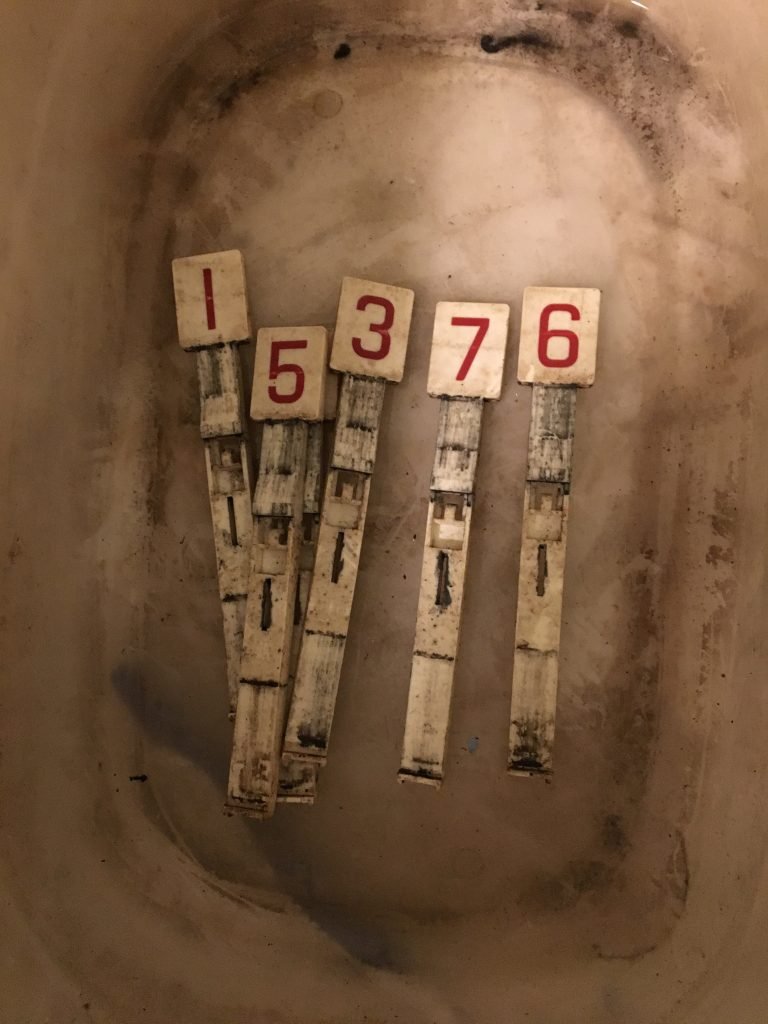

Dirty targets Clean targets Cleaned up drop targets with a Cactus in the middle.
I ended up cleaning and adjusting the sequence bank as some of the switches were not registering. The flippers felt good on this game and did not need rebuilt. The flippers ended up getting new coil sleeves and a good clean.
Conclusion
This ended up being a bigger project than I initial thought, but was fun to get this game back up and running. The owner is excited to play this game again after it sat for so many years. Sky Jump is a game that I had my collection at one point in time and was nice to see it again in my shop.
