Flipper rebuild kit

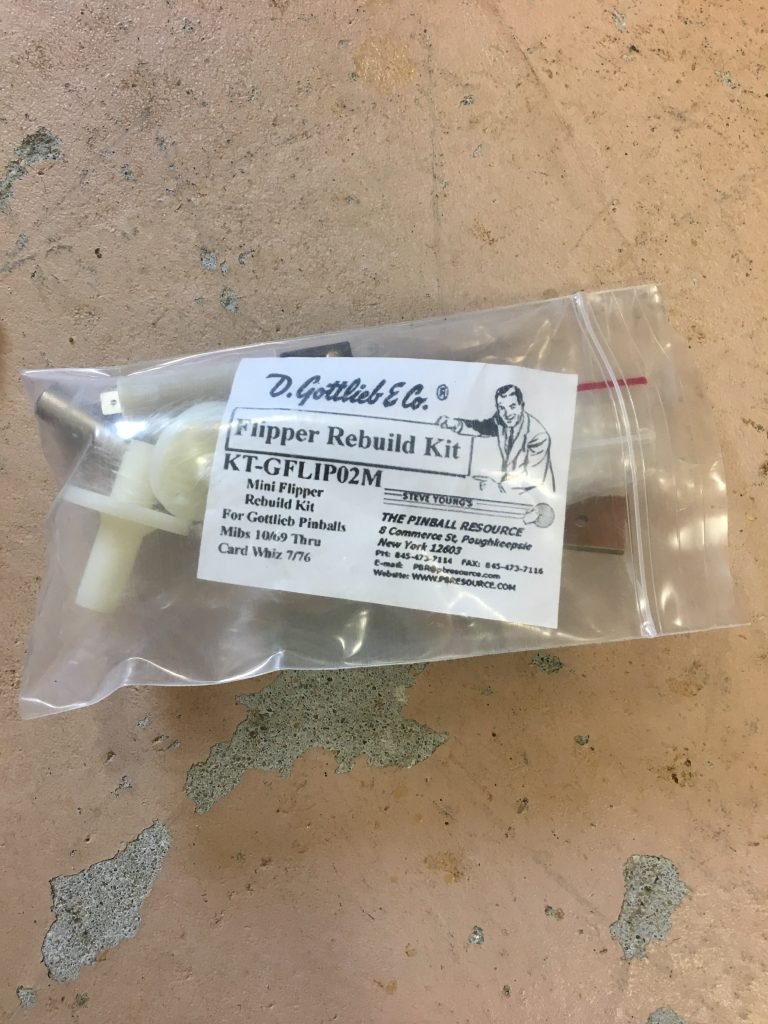

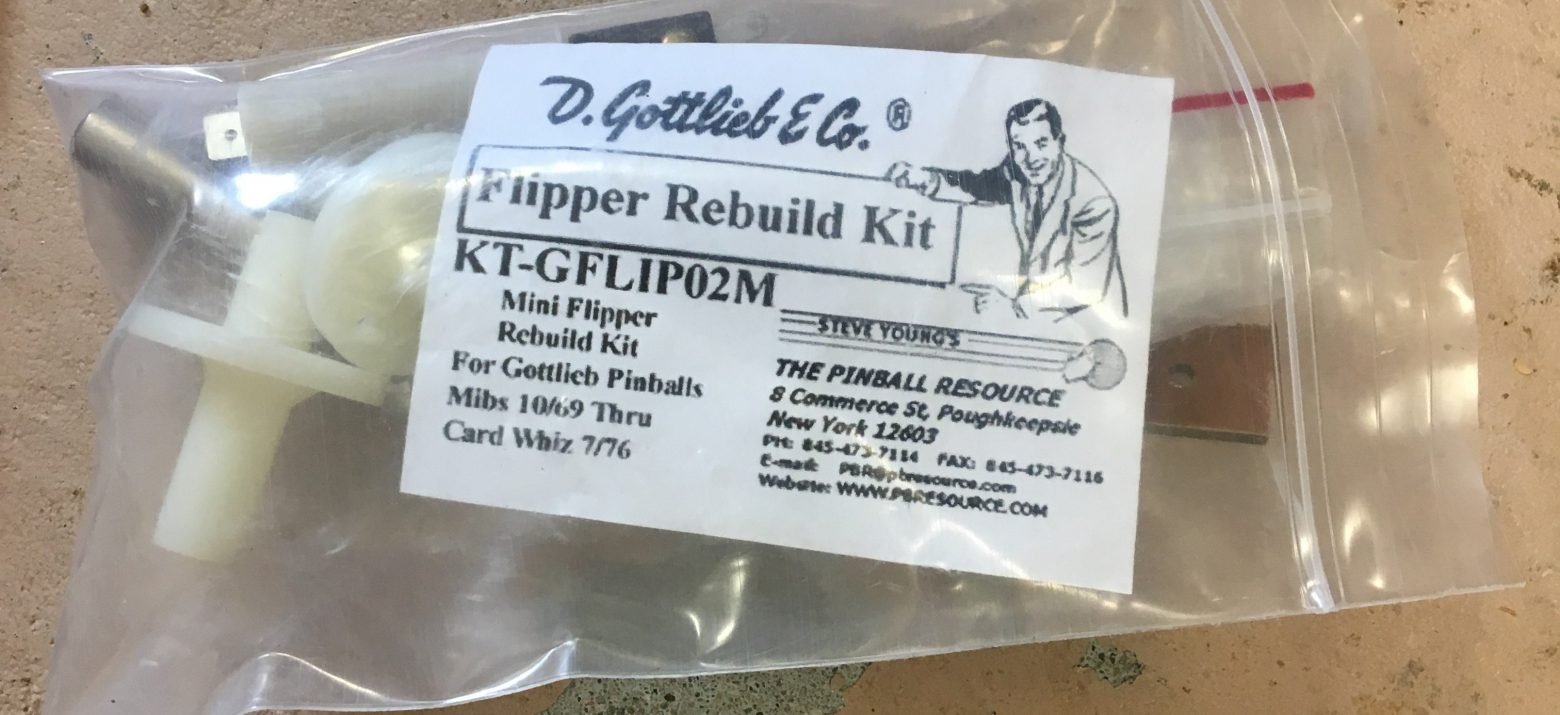

My El Dorado pinball machine had a difficult time flipping to the top targets. I knew that this needed fixed immediately to truly enjoy this game. I decided to order a rebuild kit from Pinball Resource. The kit is simple to install and wanted to share a couple pointers along the way.

Flipper rebuild kit
Flipper rebuild kit

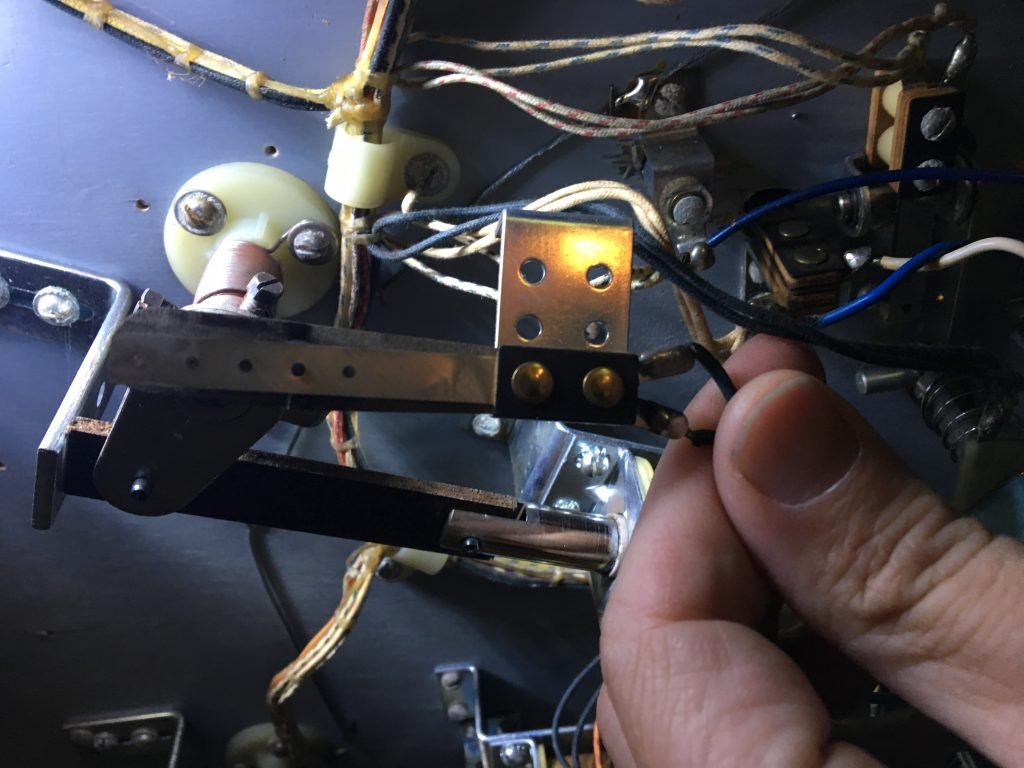

The first thing that I did was remove the two EOS switches. I just de-soldered the two wires going to the switches and unscrewed the bracket from the playfield.

EOS Switch
EOS Switch

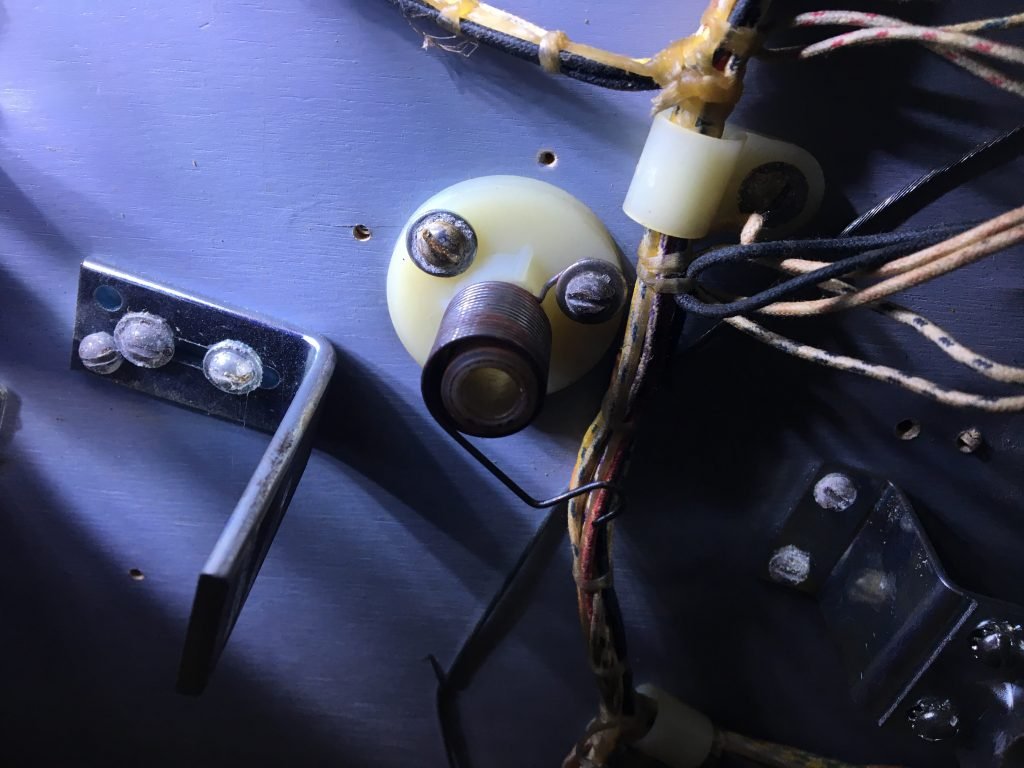

The second step that I did was to remove the coil stop, flipper, and the pawl/link/plunger. You will need to unwind the spring that holds the flipper and loosen the two screws that hold the flipper to the pawl.

Flipper spring
Flipper spring

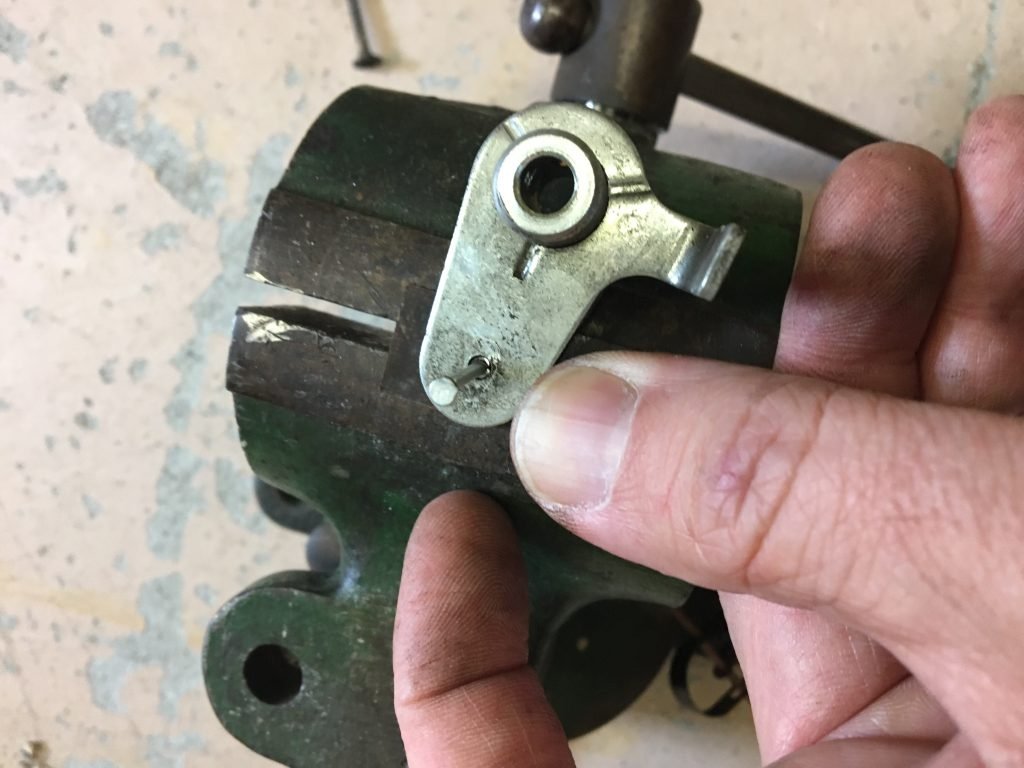

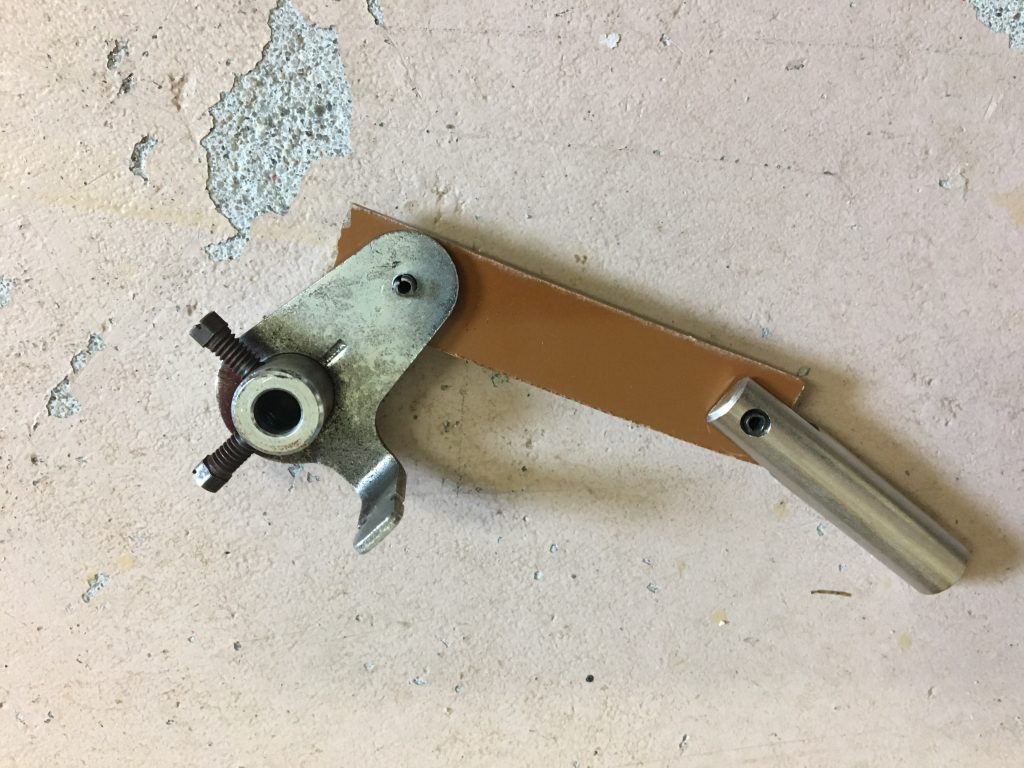

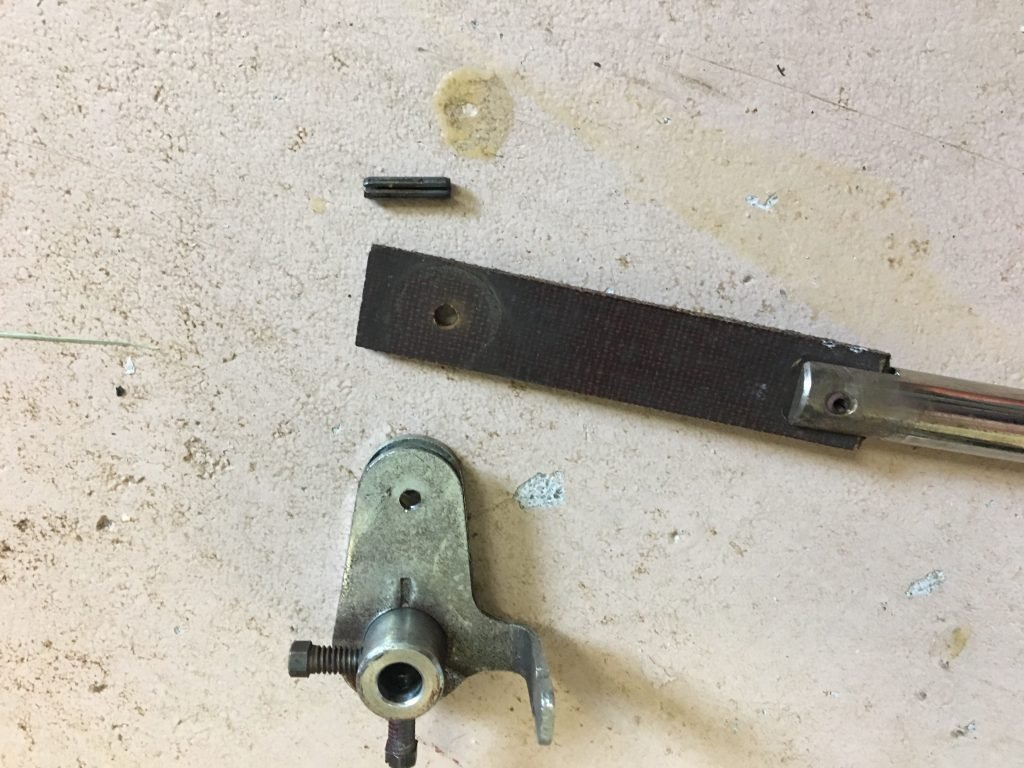

The roll pin I reused and installed with the new link/plunger. I put the pawl on my work vise and hammered out the roll pin. A nail set (or even a small nail) can punch out the roll pin out of the pawl/plunger. Hammer the roll pin into place.  (A Vise Grip helps to get the roll pin in position.

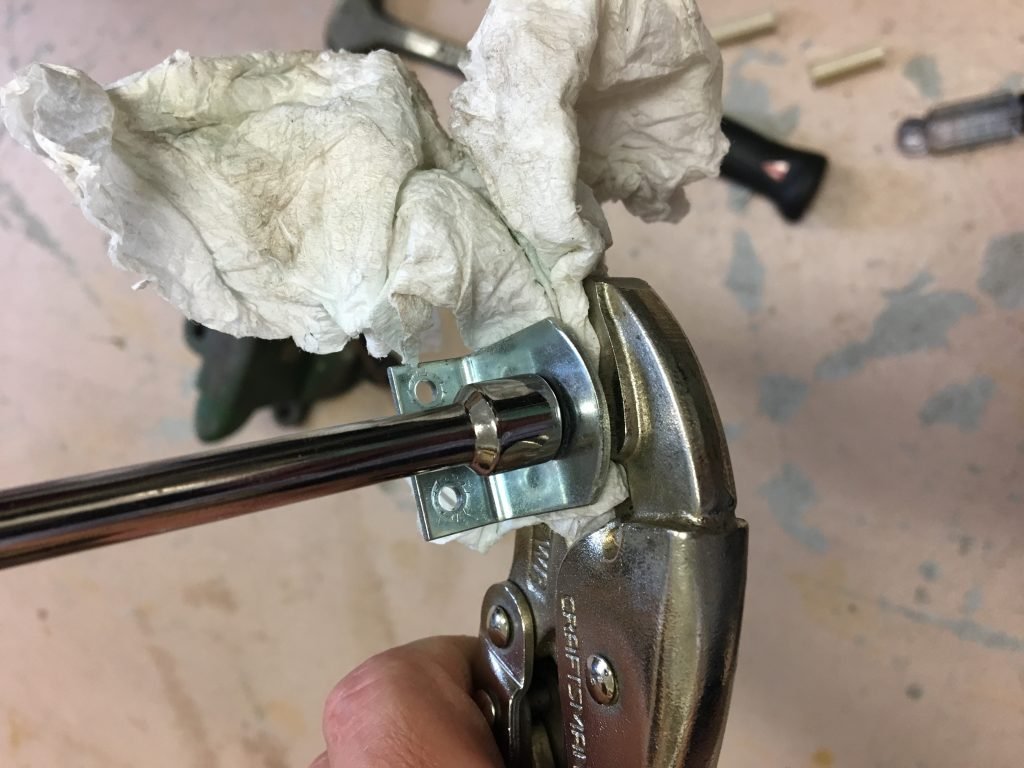

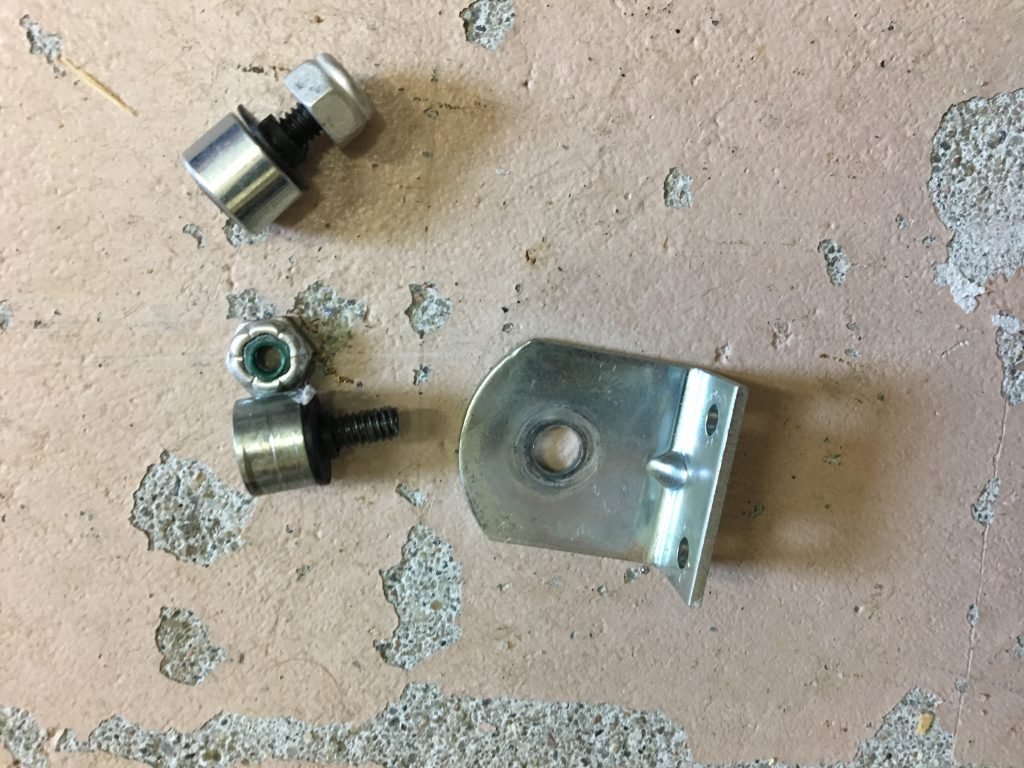

The next step that I did was to replace the bushing on the playfield (don’t forget the spring). Then proceed to removing the coil stop bracket and switching out the coil stops with new ones. I used a towel around the coil stop to get it on and off so I would damage it.

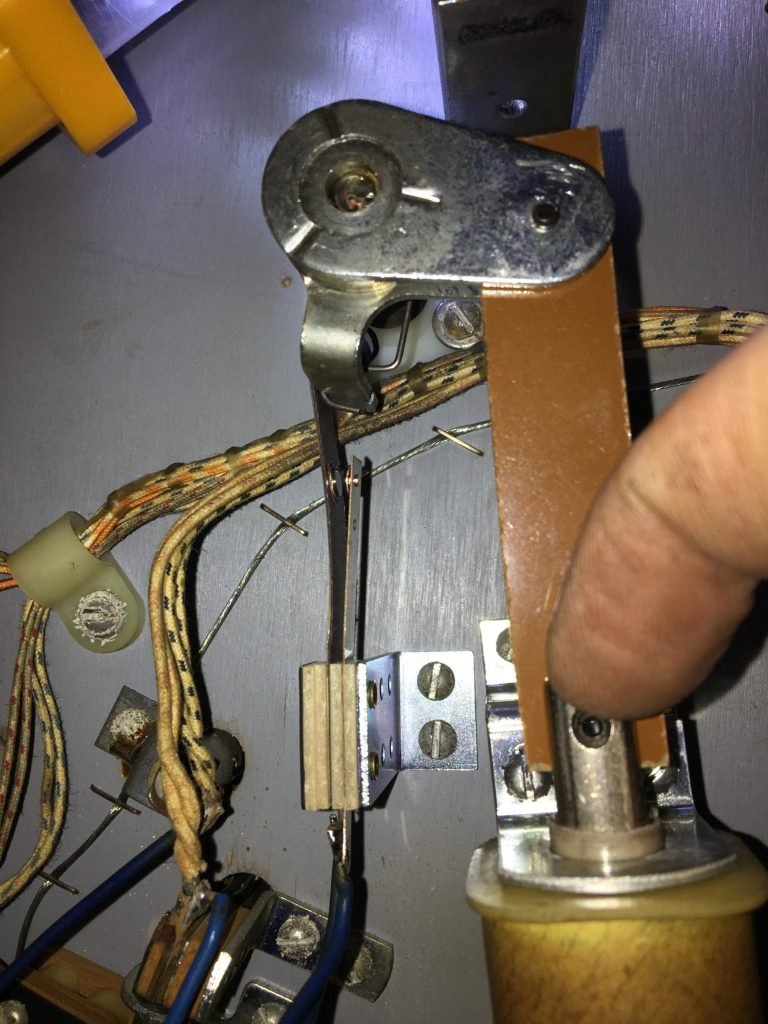

To reassembly the flipper assembly, just follow the steps in reverse order. When the flippers are reinstalled, check the EOS switch. There should be about 1/8″ gap as the flipper extends to its fullest position.

EOS switch
Check the EOS switch. Make sure to pull in the plunger and not the pawl for better accuracy.

The next item to check is the return flipper spring. Mine was set too tight and needed to be loosened. It should be strong enough to just return the flipper to the normal position when the playfield is upright. This was about 3/4 of a turn on my machine, and I had to move the spring to a different screw hole on the bushing.

Game now plays great and can hit the top targets!
