I am having trouble with the wiring on the Stellar Wars illustrations. There are colors such as black, red and purple that are not on the game boards. Need some novice direction here if possible. Mike

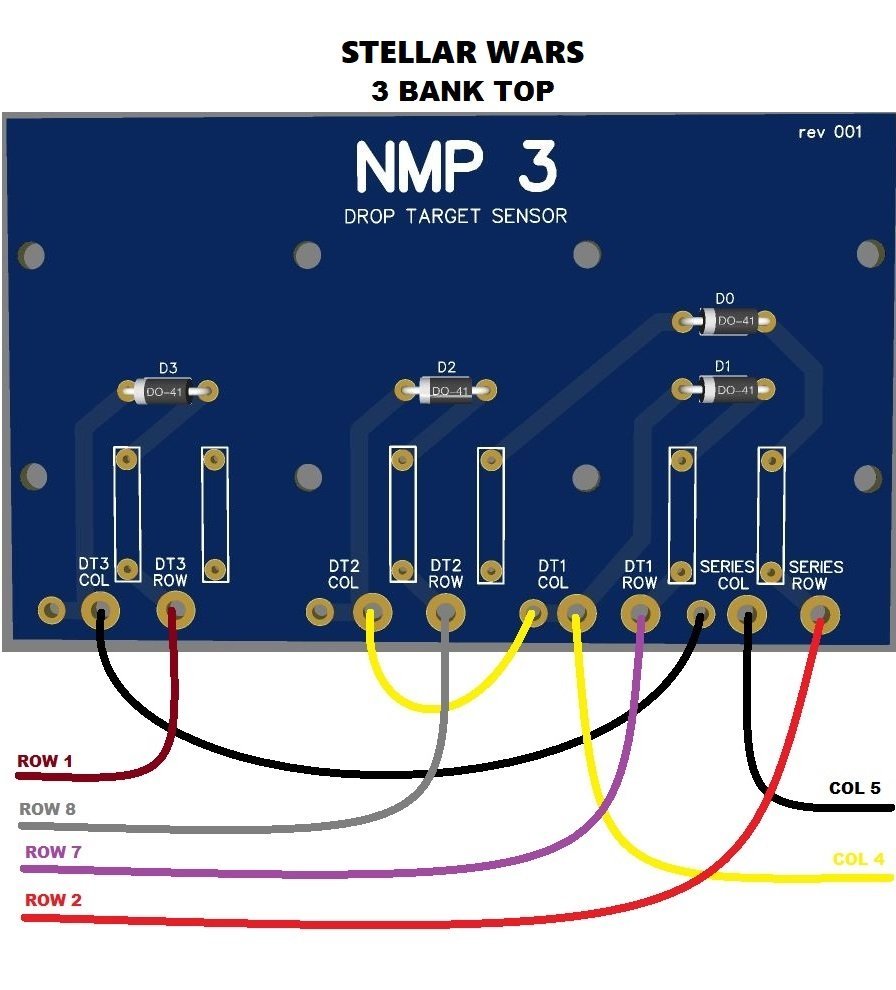

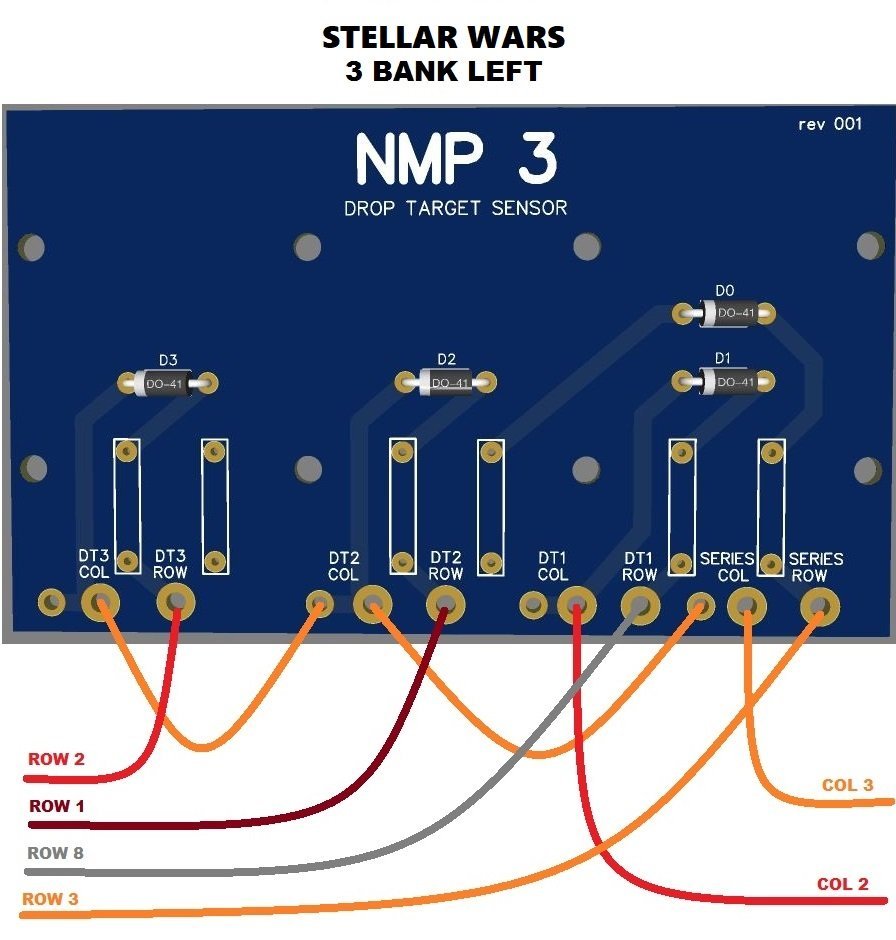

Don’t worry about the colors in the diagram, but focus on the column and row numbers. The color in the wiring diagram isn’t color-coded to the game. These are generic diagrams of how to wire each game.

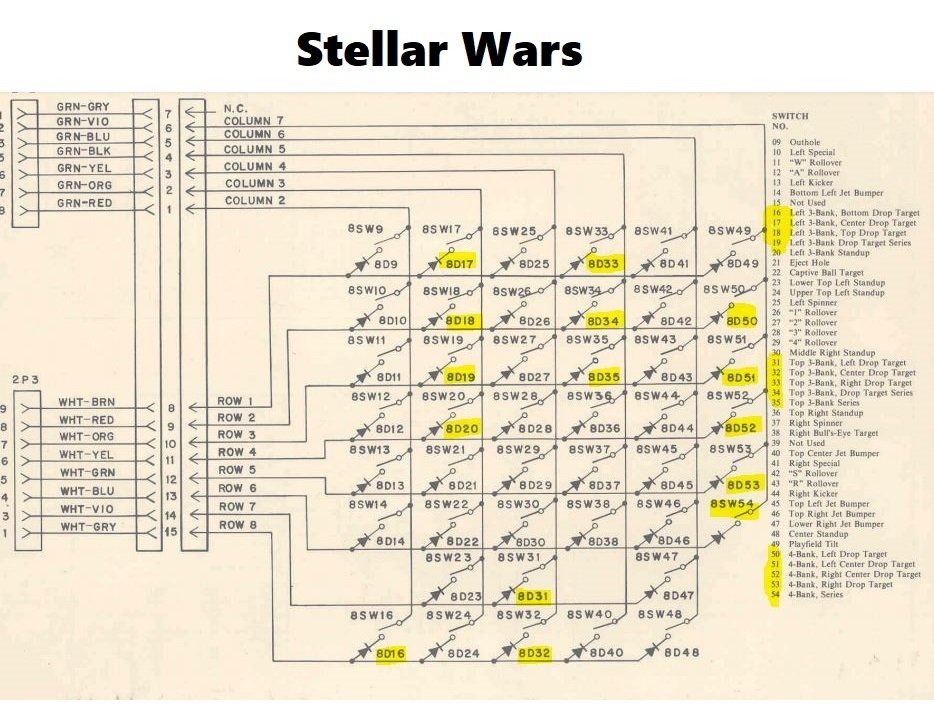

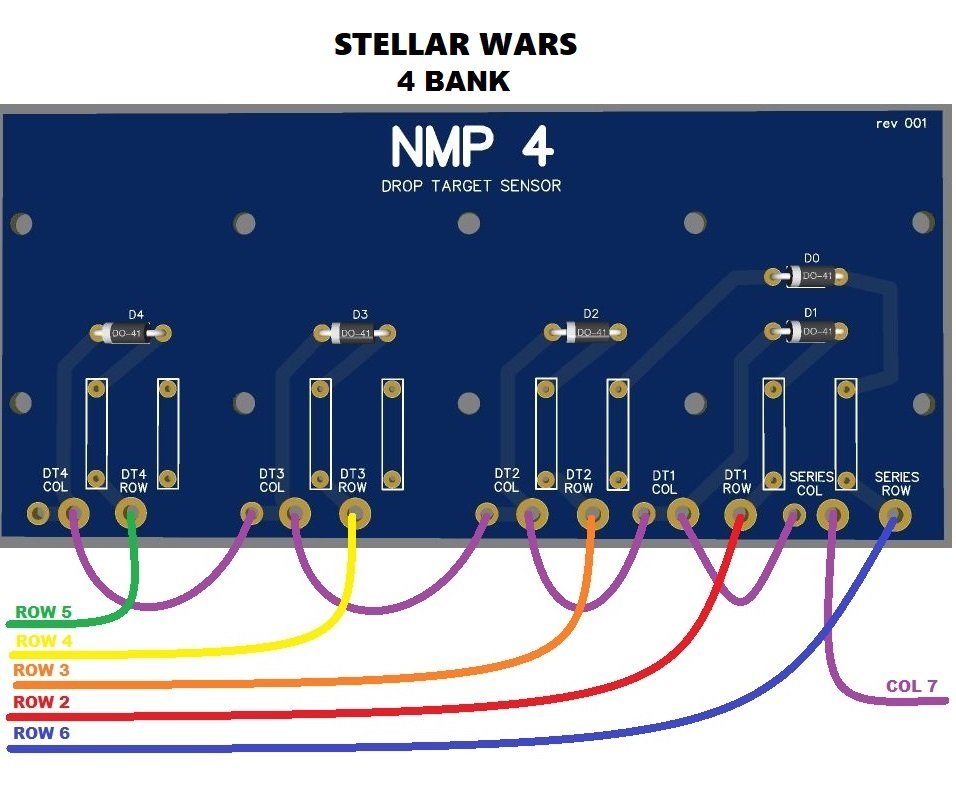

Example with Stellar Wars: The green wire on the 4-bank assembly labeled row 5 isn’t actually green. Look at the switch matrix and you’ll see it’s actually a WHT-GRN wire found in the game.
